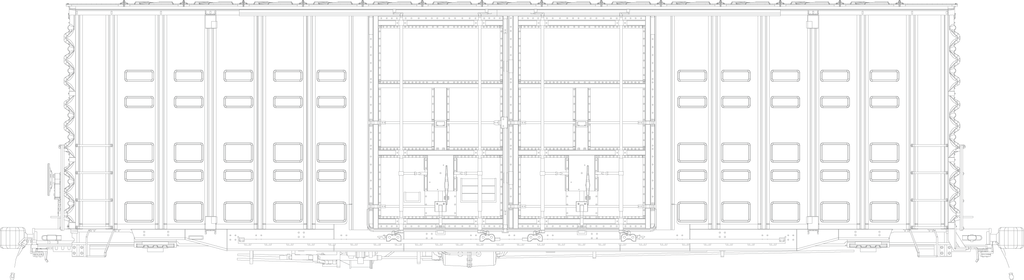

DEP60000-04 ACF 1971 50' Ext. Post Waffle, 8+8 plug door, Undec Kit
THIS IS ONLY A DEPOSIT FOR THE ACTUAL PRODUCT. AN ADDITIONAL INVOICE WILL BE ISSUED AT THE TIME OF ARRIVAL OF THE PRODUCT FOR THE REMAINDER OF THE VALUE, WHICH WILL BE $54.99
ACF Industries (ACF) started producing this general type of 70t Hi-Cube exterior post designed car in 1971, the design developed further in 1973-74 which is the prototype of this car. The difference is mainly the position of the waffles, the 1971 ones are shift toward the posts whereas the 1973-74 ones have them centered between posts.
We believe this car design was tailored to paperboard service, companies like Weyerhaeuser, Gaylord and Inland-Tempe at several plant locations in their nationwide network (including Canada). Paperboard is the raw material used in the making of carboard boxes. The Hi-Cube height was important to accommodate various sizes of paper rolls, with either one-high, two-high or three-high depending on internal or external customer requests. The Plate clearance for these cars pre-dates the Plate F introduction so they were marked with Exceeds Plate C. Even with it's height these cars travelled throughout the US and Canada and usually ganged together into small blocks of cars. So, it was common to see all railroad schemes in one string together.
The pooled railroads with this general car design were with waffles; BN(ex-SLSF), BNSF, C&EI, MP, MRL, SLSF and TO&E. Without waffles; ATSF,BN and BNSF (100t versions). This design lasted a long time and there are reports they are still running around to this day, although with heavy modifications.
DESIGN FEATURES
- Differing lettering placements for individual car numbers for repainted cars
- Car number specific handbrakes, Ajax, Ellcon-National, Equipco, Klasing or Universal
- ACF draft gear designed tailored to each prototype
- Multiple versions of door stops, waffles and non-waffles
- Durable rubber air hoses and metal corner stirrups
- 70t trucks with metal wheels and axles, type matched to prototype
- Highly detailed Stanray R3-4 ends uniquely used to this Hi-Cube
- Researched accurate lettering, from the smallest stencils to the nuisances of repainted cars
- Kadee ”Scale” Whisker couplers
