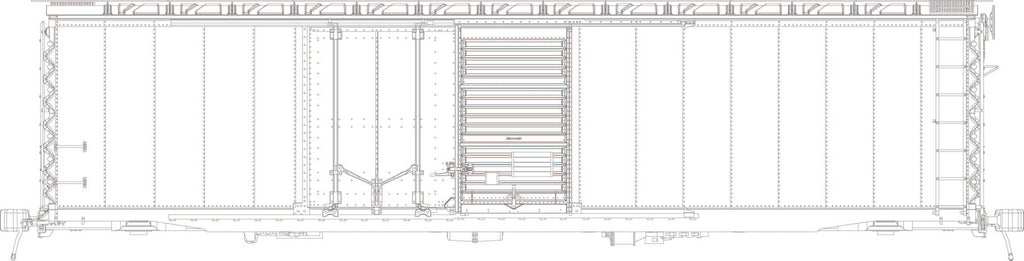

RES70530-01 St. Cloud built 50' XM 14-0 Combination door, Undec Kit
PLEASE NOTE: This is a RESERVATION product ONLY. Please do not add current in stock items to your RESERVATION product order, any additional cars will not be held as part of this reservation. We are expecting a delivery window some time in late 2022 and the general price will be in line with current RTR prices. When the product becomes available to purchase we will send out invoices for your payments in the order we received them. So, the earlier you place your reservation the earlier you will be notified. We are trying to be better at producing the correct quantities of cars that our customers want. No more missing out or chasing up with dealers worldwide.
The RESERVATIONS close on the 15th of October 2021. Reservations received by the deadline will guarantee the models ordered but also help us to determine accurate quantities per item to our factory. You can also place your reservations with any of our current dealers.
After many years of successful 40-foot boxcar design and manufacturing at the Great Northern (St. Cloud) Shops in St. Cloud, MN, times were changing and that meant cars needed to get longer. In late 1956 the St. Cloud Shops started to build one of their most successful group of 50-foot general service boxcar designs. The offset double-slider arrangement had pre-manufactured Youngstown sides along with off the shelf items to make up the bulk of the car design. This was a direct response to current and future on-line shippers from the forestry, metals and minerals industries. Eventually St. Cloud made 1000 cars for the GN and an additional 500 cars for sibling Spokane, Portland and Seattle (SP&S). So, basically these were the main workhorses on the GN and SP&S for a couple of decades.
Even though the finance was secured, raw materials and parts purchased and parts made in 1956, it wasn't until January 1957 for the first ones to roll out the door. They all had distinctive diagonal panel gussets on either side of the door opening which was to strengthen the fifteen-foot door opening for mechanized loading. The door opening was becoming the new standard to forklift loading methods more common in the industries served. Being of Plate B clearance standard translated to unlimited service to all rail lines in the USA, Canada and Mexico.
In 1961 the GN built Combination door version of the Double slider boxcar, to give more flexibility to shippers and the way they pack their loads. Effectively, making a moveable wall so loads can be pushed up against them for less shifting of loads. This must have been a successful design since they ended up with 500 cars being made.
These cars came in multiple paint schemes, but the initial orders came in Vermillion Red with "super" large Slanted GREAT NORTHERN lettering on the right side of the car body. GN was not shy about advertising! Later on they received variations of that scheme, as well as the Empire scheme in Vermillion and Glacier Green with GN finishing up post 1966 with the Big Sky Blue. Of course, the paint kept on rolling into the BN era, with several subtle variations in the railroad green scheme. Some were straight repaints while after 1973 most were taken through a few Capital Rebuild Programs (CRP) at a number of shops.
- Differing lettering placements for individual car numbers for repainted cars
- Nailable Steel Floor (NSF) or Wood floors where appropriate
- Accurately applied roofwalks or not with cut down ladders to match era specific schemes
- Car number specific handbrakes, Ajax, Ellcon-National, Equipco, Klasing or Universal
- Fixed frame design with manual brake wear controls
- St. Cloud designed ladders and other appliances
- Wire parts for ALL brake rods, air pipes, and stirrups in specific GN styles
- Durable rubber air hoses and metal corner stirrups
- 50t trucks with metal wheels and axles
- Highly detailed welded Stanray R3-4 ends uniquely used by the St. Cloud Shops
- Researched accurate lettering
- Kadee ”Scale” Whisker couplers
